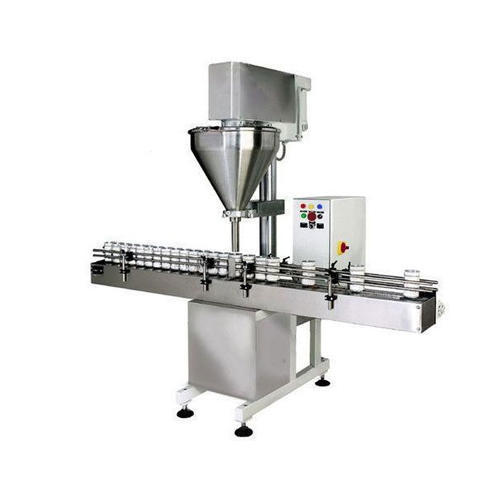

Automatic Chyawanprash Filling Machine

Product Description

Description:

Automatic Cosmetic cream filling machine / lotion filling Machine works on volumetric principle with rotary valve type piston. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, of S.S Slat Conveyor, with self-centering devices & Stainless Steel Piston. The main drive of the machine and conveyor drive consist of A/C Motor with synchronized variable A/C Frequency drive.

Rotary Valve Model:

Cosmetic cream filling machine / Ointment filling machine fitted with, rotary valve and is suitable for dispensing, lotions and creams. Accuracy is 1%. Automatic model, containers moving on conveyor belt lifting of container at filling station to ensure proper layer of, jelly, ointment or cream. It features an in feed hopper, rotary valve with positive shut-off nozzle (eliminating drips), stroke limitation fill volume adjustment, and is designed to stand alone. Construction is of Stainless Steel and the control system is pneumatic (3.5kgf/cm square) and electric (single phase) over air.

Operation:

Containers moving on S. S. Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated valve system. The twin pneumatically operated stopper system and can precisely match for centering of container below nozzles, to avoid spillage of Cream / lotion on container.

Technical Details- Cosmetic Cream Filling Machine / Ointment Filling Machine

• Model No:SAFEX
• Power:440 Volts /3 Phases /50 Hz
• Product:Cream-Lotion (Semi Solid)
• Air Pressure:4-6 Kg
• Out/Put Speed:Up to 40 Bottle per minute
• Filling Range:5 gm to 1000 gm.
• Power Input:2 Kw

Automatic single head filler model available for output up to 2000 fills/hr. Special with twin pistons for every filling head also available for higher output on request:

Salient Features: Cosmetic Cream Filling Machine / Ointment Filling Machine

• Volume adjustment stud to adjust fine setting of filling volume.
• Star wheel centering of Bottle under the filling head.
• Nozzles of different size and spares to adjust ht. of container and filling station gap between nozzle and container max 3 mm to have uniform filling of thick material.
• No container No filling system arrangement.
• Automatic single Head Cream / lotion Filling Machine for accurate filling of products of various viscosities in Jars, Containers and Bottles of different shapes and sizes, with an accuracy upto  1%.
• Filling capacity ranges from 5 Gms to 1 kg.
• The machine has a positive cut-off valve for drip free filling.
• The quantity of fill can be easily adjusted.
• The machine can be linked with Automatic Sealing / Capping machines.
• The machine is suitable for filling Cream / lotions, adhesives, balms, gums and food, pharmaceutical or cosmetic products in Cream / lotion form.
• The main drive of the machine and conveyor drive consist of A/C Motor with synchronized variable A/C Frequency drive
• Fill a wide range of products
• Handles viscous fluids through to thick products with particulates
• Simple and mechanically reliable to operate
• Easy to clean and maintain
• Accurate and reliable metered dosing.
• Water jacketed Hopper (Optional)
• Acrylic cabinet (Optional)
• Stirrer Screw type to push material down. (optional)
